Key Features:

*Deep learning-based perimeter protection

*H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression

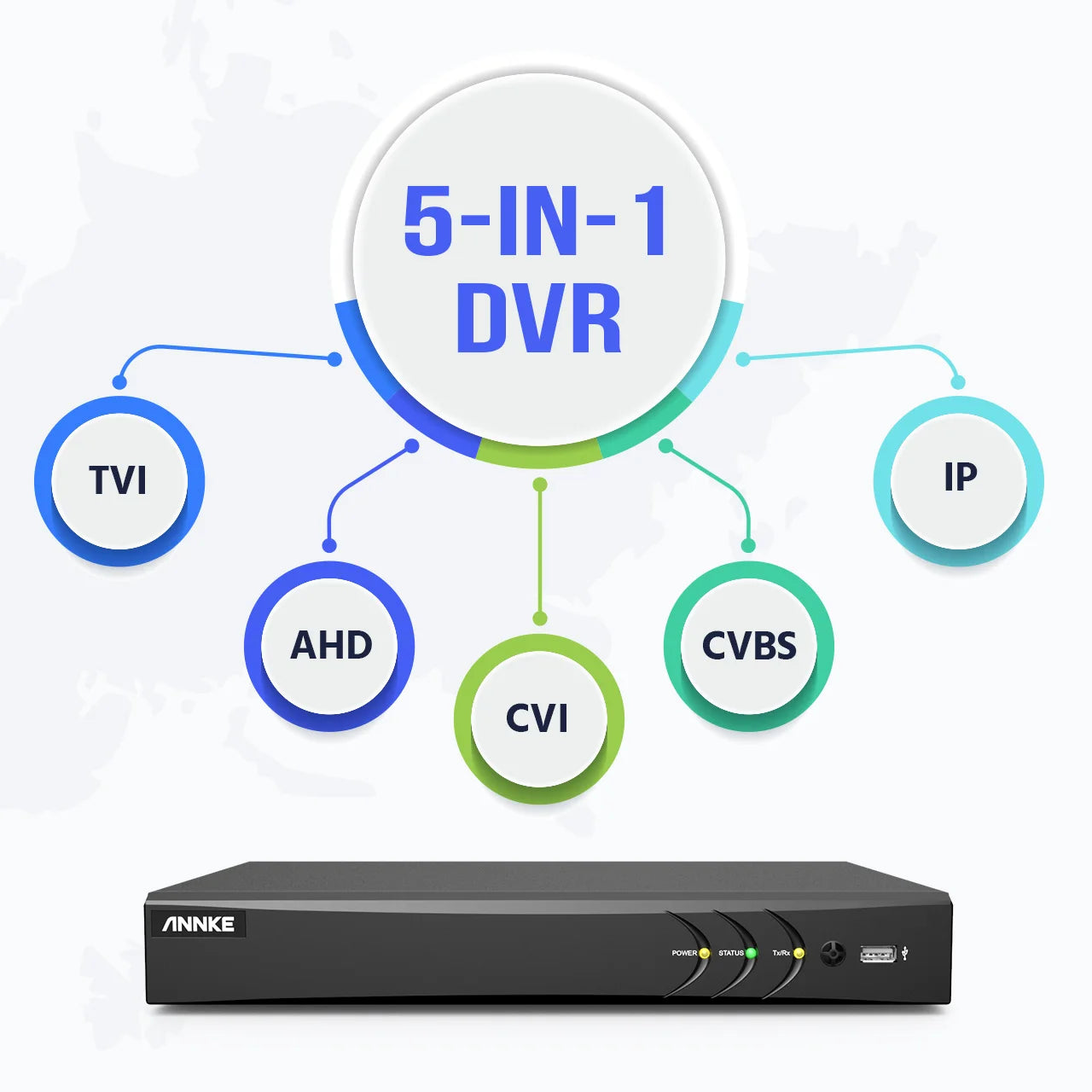

*HDTVI/AHD/CVI/CVBS/IP video inputs

*Audio via coaxial cable

*Up to 8-ch IP camera inputs (up to 8 MP)

*Up to 10 TB capacity per HDD

Specifications:

DVR：

Video Compression: H.265+/H.265/H.264+/H.264

Video Input: 8CH Analog Camera+ 4CH IP Camera

Video Output: CVBS; VGA up to 1080p; HDMI up to 4K

Supported analog camera types:

Support HD TVI Input:8 MP@15 fps, 5 MP@20 fps, 3K@20fps, 4 MP@30 fps, 4MP@25 fps, 3MP@18 fps, 1080p30, 1080p@25fps, 720p@60 fps, 720p@50 fps,

720p@30 fps, 720p@25 fps

Support AHD Input: 5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

Support CVI Input: 5 MP@20 fps , 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

Support CVBS Input

IP Camera input: 4-ch (up to 12-ch)

Max Playback Channel: 8 Channels

Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

What’s in the Box?

* 1× DVR

* 1× USB Mouse

* 1× Power Adapter

* 1× HDMI Cable

* 1× Network Cable

* 1× User's Manual For DVR
